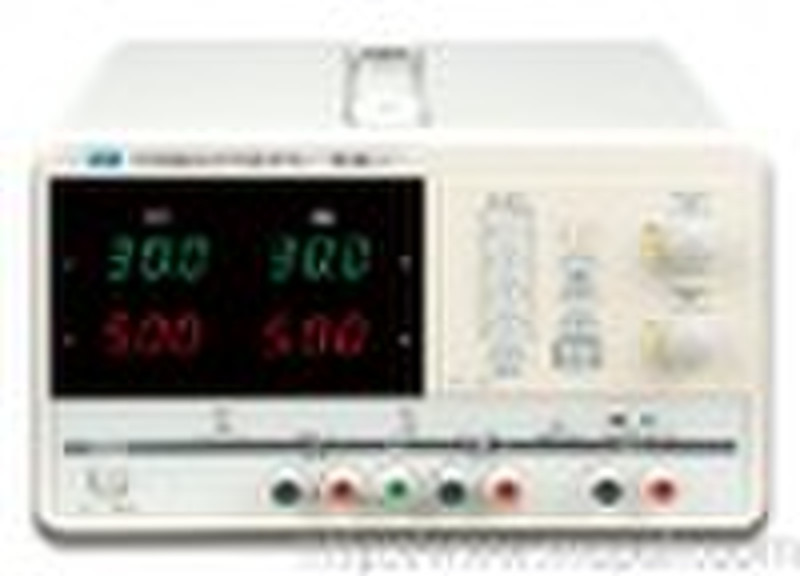

M10-MPD303 - PROGRAMMABLE DC POWER SUPPLY

M10-MPD303 - PROGRAMMABLE DC POWER SUPPLY Features .Using MCU technology to improve raliability and accuracy .100mV and 10mA resolution .4 groups setting memory .Three fixed voltage selection (2.5V/3.3V/5V, 3A) .Over current protection .High stability, low drift, low ripple .Key lock and output off function .intelligent fan control Specifications .Line Regulation: CV≤1×10-4+3mV CC≤2×10-3+3mA Fixed: ≤15mV Load Regulation: CV≤1×10-4+3mV (I≤3A) CC≤2×10-3+3mA (I≤3A) CV≤2×10-4+5mV (I3A)CC≤2×10-3+3mA (I3A) Fixed: ≤15mV .Ripple & Noise: CV≤1.0mV rms (I≤3A)CC≤3mA rms (I≤3A) CV≤2.0mV rms (I3A) CC≤6mA rms (I3A) Fixed: ≤2mV rms .Response Time: ≤100μs(50% load, Min current: 0.5A) .Display Accuracy: Voltmeter ±(0.2%Rdg+3digits) (0 9.99V) ±(0.5%Rdg+2digits) (10 30V) Ammeter±(0.5%Rdg+3digits) .Input Voltage: 110 127VAC±10%, 220 240VAC±10%, Switchable .Dimensions(W×H×D): 250×150×310mm ModelOutput voltageOutput CurrentFixed outputWeight (kg)M10-MPD3030 30V0 3A2.5V/3.3V/5V, 3A7.5M10-MPD3050 30V0 5A2.5V/3.3V/5V, 3A10
