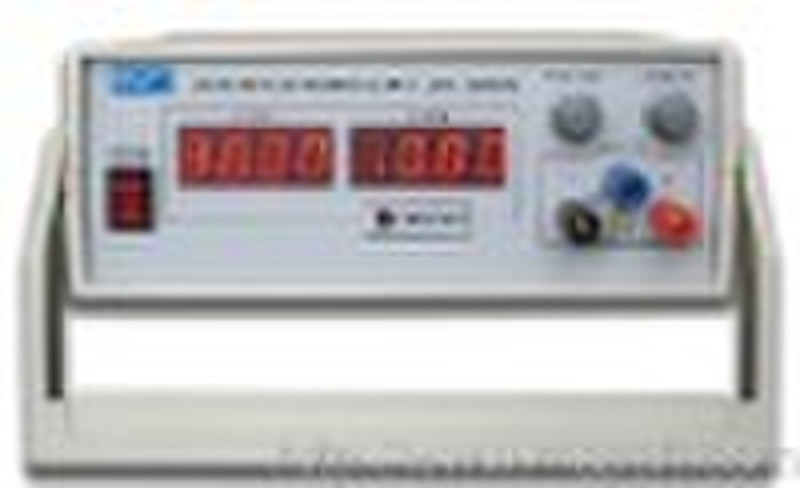

M10-LSS3010 - SWITCHING POWER SUPPLY
Jade Yang
Contact person
Basic Information
| Output Power | 201 - 300W |
|---|---|
| Output Type | Single |
| Place of Origin | Shanghai China (Mainland) |
| Brand Name | MCP |
| Model Number | M10-LSS3010 |
| Input Voltage | 110~127VAC ±10% / 220~240VAC ±10... |
| Output Voltage | 0~30V |
| Output Frequency | DC |
| Output Current | 0~10A |
M10-LSS3010 - SWITCHING POWER SUPPLY Features .Two LED digital panel meters .Constant voltage and constant current operation. .Efficiency up to 98% .High power density, small and light .Voltage and current control by 10-turn potentiometer, resolution 0.03% .Protected against all overload and short circuit conditions .Isolated analog and digital programming interface option Specifications .Line Regulation: CV10mV CC4mA .Load Regulation: CV3mV CC3mA .Ripple & Noise:CV3mVrms, 40mVp-p(20Hz 20MHz) CC3mArms .Display Accuracy:Voltmeter ±(0.2%Rdg+2 digits) Ampmeter ±(0.2%Rdg+5digits) .Input Voltage: 110 127VAC±10%/60Hz, 220 240VAC±10%/50Hz, Switchable .Dimensions: 230(W)x90(H)x260(D)mm .Weight: 2.2kg ModelOutput VoltageOutput CurrentM10-LSS30100 30V0 10AM10-LSS60050 60V0 5AM10-LSS10030 100V0 3A
